Interface: NYSBA Reversible Lanes - NYSBA Command Center

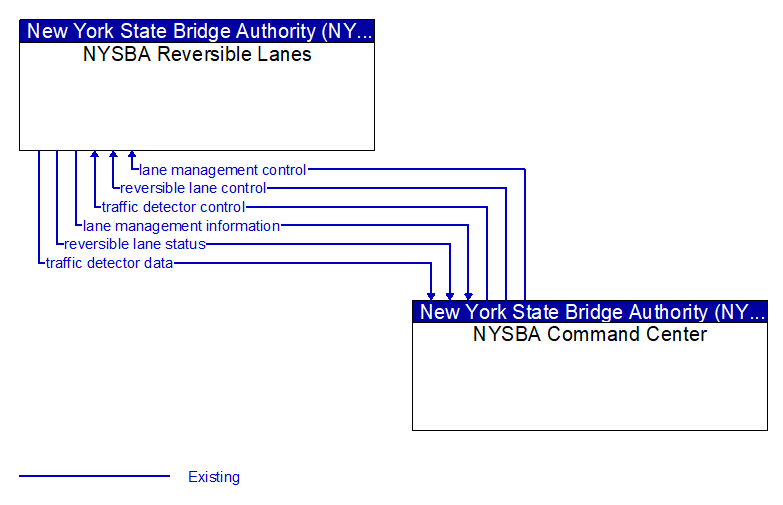

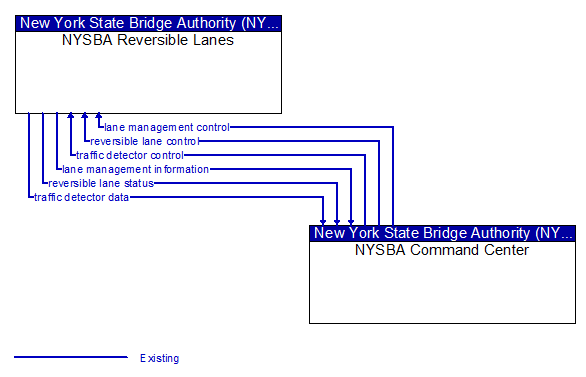

NYSBA Reversible Lanes to NYSBA Command Center Interface Diagram

Architecture Flow Definitions

lane management control (Existing) Applicable ITS Standards

Information used to configure and control dynamic lane management systems.

lane management information (Existing) Applicable ITS Standards

System status of managed lanes including current operational state, violations, and logged information. This includes lane usage information including both traditional traffic flow measures and special information associated with managed lanes such as measured passenger occupancies. It also includes the operational status of the lane management equipment.

reversible lane control (Existing) Applicable ITS Standards

Control of automated reversible lane configuration and driver information systems.

reversible lane status (Existing) Applicable ITS Standards

Current reversible lane status including traffic sensor and surveillance data and the operational status and mode of the reversible lane control equipment.

traffic detector control (Existing) Applicable ITS Standards

Information used to configure and control traffic detector systems such as inductive loop detectors and machine vision sensors.

traffic detector data (Existing) Applicable ITS Standards

Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic sensor system.
