Interface: NYSBA Command Center - NYSBA ITS Field Equipment

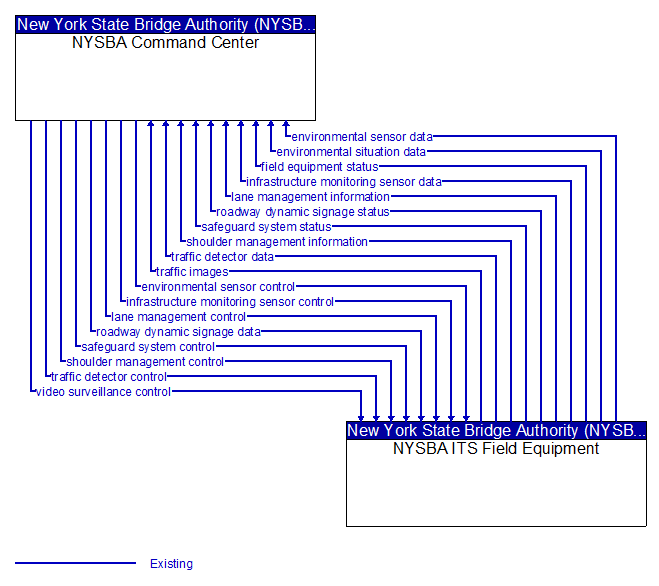

NYSBA Command Center to NYSBA ITS Field Equipment Interface Diagram

Architecture Flow Definitions

environmental sensor data (Existing) Applicable ITS Standards

Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) as measured and reported by fixed and/or mobile environmental sensors. Operational status of the sensors is also included.

environmental sensors control (Existing) Applicable ITS Standards

Data used to configure and control environmental sensors.

environmental situation data (Existing) Applicable ITS Standards

Aggregated and filtered vehicle environmental data collected from vehicle safety and convenience systems including measured air temperature, exterior light status, wiper status, sun sensor status, rain sensor status, traction control status, anti-lock brake status, and other collected vehicle system status and sensor information. This information flow represents the aggregated and filtered environmental data sets that are provided by the RSE to the back office center. Depending on the RSE configuration and implementation, the data set may also include environmental sensor station data collected by the RSE.

field equipment status (Existing) Applicable ITS Standards

Reports from field equipment (sensors, signals, signs, controllers, etc.) which indicate current operational status.

infrastructure monitoring sensor control (Existing) Applicable ITS Standards

Data used to configure and control infrastructure monitoring sensors.

infrastructure monitoring sensor data (Existing) Applicable ITS Standards

Data read from infrastructure-based sensors that monitor the condition or integrity of transportation infrastructure including bridges, tunnels, interchanges, pavement, culverts, signs, transit rail or guideway, and other roadway infrastructure. Includes sensor data and the operational status of the sensors.

lane management control (Existing) Applicable ITS Standards

Information used to configure and control dynamic lane management systems.

lane management information (Existing) Applicable ITS Standards

System status of managed lanes including current operational state, violations, and logged information. This includes lane usage information including both traditional traffic flow measures and special information associated with managed lanes such as measured passenger occupancies. It also includes the operational status of the lane management equipment.

roadway dynamic signage data (Existing) Applicable ITS Standards

Information used to initialize, configure, and control roadside systems that provide driver information (e.g., dynamic message signs, highway advisory radio). This flow can provide message content and delivery attributes, local message store maintenance requests, control mode commands, status queries, and all other commands and associated parameters that support remote management of these systems.

roadway dynamic signage status (Existing) Applicable ITS Standards

Current operating status of dynamic message signs, highway advisory radios, or other configurable field equipment that provides dynamic information to the driver.

safeguard system control (Existing) Applicable ITS Standards

Data that controls safeguard systems (remotely controlled equipment used to mitigate the impact of incidents on transportation infrastructure, such as blast shields, exhaust systems, etc.).

safeguard system status (Existing) Applicable ITS Standards

Current operating status of safeguard systems (remotely controlled equipment used to mitigate the impact of incidents on transportation infrastructure, such as blast shields, exhaust systems, etc.). Status of the systems includes operating condition and current operational state.

shoulder management control (Existing) Applicable ITS Standards

Information used to configure and control systems that allow use of a shoulder as a lane for vehicular traffic.

shoulder management information (Existing) Applicable ITS Standards

System status including current operational state, violations and logged information.

traffic detector control (Existing) Applicable ITS Standards

Information used to configure and control traffic detector systems such as inductive loop detectors and machine vision sensors.

traffic detector data (Existing) Applicable ITS Standards

Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic sensor system.

traffic images (Existing) Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and meta data that describes the images.

video surveillance control (Existing) Applicable ITS Standards

Information used to configure and control video surveillance systems.
