Interface: NYSDOT Region 8 HVTMC Traffic Management - TRANSCOM Middleware

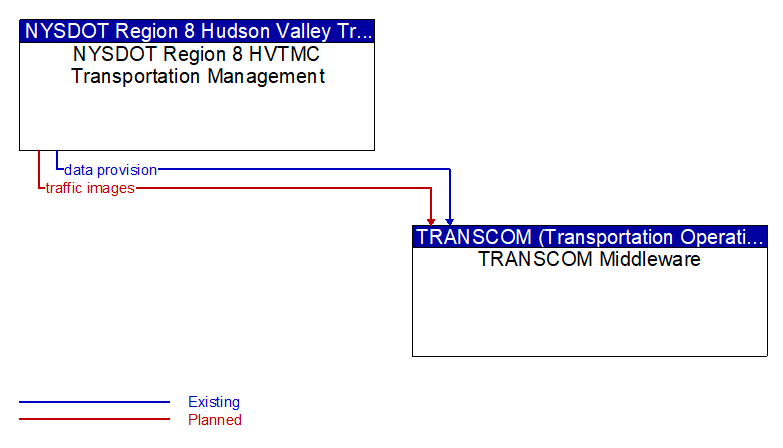

NYSDOT Region 8 HVTMC Traffic Management to TRANSCOM Middleware Interface Diagram

Architecture Flow Definitions

data provision (Existing) Applicable ITS Standards

Data provision provides the source material for a publish-subscribe or query-retrieval data distribution scheme. This is the 1 of the 1:N data distribution architecture. This flow is a super-flow; it does not define data elements but is inclusive of any flow implemented using publish-subscribe or query-retrieval methods.

traffic images (Planned) Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and meta data that describes the images.
