Interface: UCAT Vehicle Operators - UCAT Vehicles

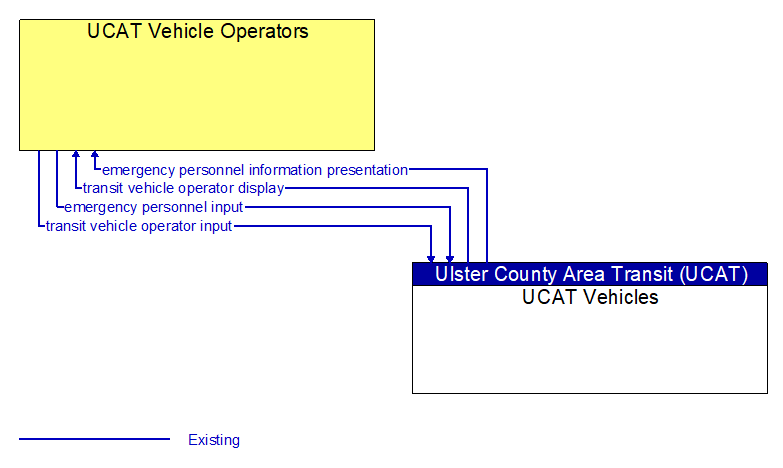

UCAT Vehicle Operators to UCAT Vehicles Interface Diagram

Architecture Flow Definitions

driver updates (Existing)

Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.

emergency personnel information presentation (Existing)

Presentation of information to emergency personnel in the field including dispatch information, incident information, current road network conditions, device status, and other supporting information.

emergency personnel input (Existing)

User input from emergency personnel in the field including dispatch coordination, incident status information, and remote device control requests.

request for service (Existing)

Driver inputs that summon an emergency response, request a financial transaction, or initiate other services.

transit vehicle operator display (Existing)

Visual, audible, and tactile outputs to the transit vehicle operator including vehicle surveillance information, alarm information, vehicle system status, information from the operations center, and information indicating the status of all other on-board ITS services.

transit vehicle operator input (Existing)

Transit vehicle operator inputs to on-board ITS equipment, including tactile and verbal inputs. Includes authentication information, on-board system control, emergency requests, and fare transaction data.
