Interface: RCDPT Transit Vehicle Operators - RCDPT TZx Transit Vehicles

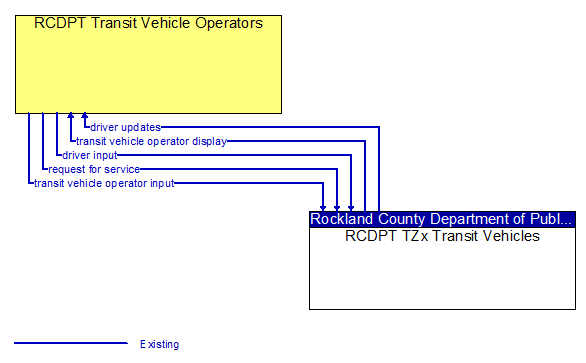

RCDPT Transit Vehicle Operators to RCDPT TZx Transit Vehicles Interface Diagram

Architecture Flow Definitions

driver input (Existing)

Driver input to the vehicle on-board equipment including configuration data, settings and preferences, interactive requests, and control commands.

driver updates (Existing)

Information provided to the driver including visual displays, audible information and warnings, and haptic feedback. The updates inform the driver about current conditions, potential hazards, and the current status of vehicle on-board equipment.

request for service (Existing)

Driver inputs that summon an emergency response, request a financial transaction, or initiate other services.

transit vehicle operator display (Existing)

Visual, audible, and tactile outputs to the transit vehicle operator including vehicle surveillance information, alarm information, vehicle system status, information from the operations center, and information indicating the status of all other on-board ITS services.

transit vehicle operator input (Existing)

Transit vehicle operator inputs to on-board ITS equipment, including tactile and verbal inputs. Includes authentication information, on-board system control, emergency requests, and fare transaction data.
